D02 Data link for aerial vehicle

Name: D02 Data link for aerial vehicle
Brand: CHINOWING
Price: 407.94 USD

Quality D02 Data link for aerial vehicle for sale

Brand Name : CHINOWING

Place of Origin : CHINA

MOQ : 1

Supply Ability : 1-10000PCS

Delivery Time : 2-8 works

Model Number : D02

Price : USD$407.94~USD$470.70

Payment Terms : T/T

Color : Silver

Dimension : 62mm*40mm*13mm

Weight : 40g(exclude antennas)

Contact Now

As a data transmission device working in 900MHz frequency band, D02`s transmission range can reach 30km.

It supports point to point, reply, point to multipoint communication. D02 is ideal for aerial service bacuase of its compact size, high integration, high sensitivity.

Features

Double USB port,TTL/232

Parameter setting software

Developed based on P900/P840/HP840

30km transmission range

Point to point,relay, point to multipoint

High speed frequency hopping

D02 Data link for aerial vehicle

Parameters

D02 Data link

Modulation hopping	Frequency hopping	Baud rate	9600bps-230400bps
Forwarding error	Hamming/BCH/Golay/Reed-solomon	Wireless Link Rate	276kbps max
Error detection	32 bits of CRC ARQ	power supply voltage	ground unit:5.0V airborne unit:7.4v-24v
Encryption	Optional(See-AES option)	Antenna interface	SMA
Output power	100mW--1w (20-30dBm)	Data interface	GH1.25--4P&USB Type-c
Transmission range	30-60km	Dimension	62mm40mm13mm
	3.3V CMOS TTL(RS232 optional)	Weight	40g(exclude antennas)
sensitivity	-110dBM@115.2kbps -108dBm@172.8kbps -107dBm@230.4kbps	Operating temperature	-20-85℃
transmission protocol	Transparent transmission

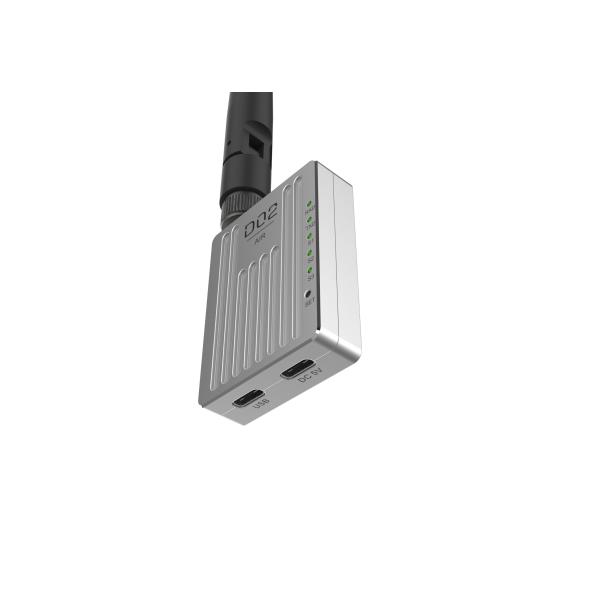

D02 Data link for aerial vehicle Images
